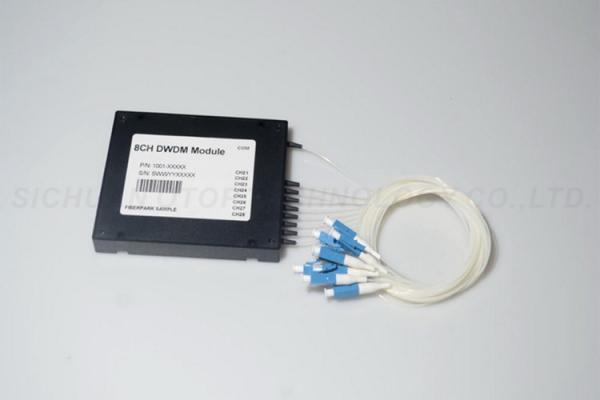

FTTX ABS BOX WDM In Optical Fiber , Steel Tube PLC WDM Splitter LC
/ UPC Single Mode
♦ Feature
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Wide Operating Wavelength: 1260nm~1620nm
Wide Operating Temperature: -5℃~75℃
High Reliability and Stability
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1620nm
- Wide Operating Temperature: From -40ºC to 85ºC
- High Reliability and Stability
♦ Specification
| Ceter Wavelength | 1310/1490/1550nm |
| Bandwidth | ± 20nm | ± 40nm |
| Exess Loss | ≤ 0.1dB (0.05dB Typ.) |
| Coupling Ratio | 50/50 | 40/60 | 30/70 | 20/80 |
| Typ. Insertion Loss(dB) | 3.05 | 4.2/2.4 | 5.4/1.8 | 7.1/1.1 |
| Max. Insertion Loss(dB) | 3.4 | 4.4/2.5 | 5.6/1.8 | 7.4/1.1 |
| Polarization Sensitivity | 0.1 | 0.1 | 0.15/0.1 | 0.15/0.1 |
| Directivity | (1*2) ≥55dB, (2*2) ≥60dB |
| Operating Temperature | -40 ~ +80 °C |
| Storage Temperature | -20 ~ +70 °C |
| Thermal Stability | ≤ 0.1dB over -40 ~ +80 °C |
| Lead Length | 1m, others on request |
| Lead Type | Bare fiber, 0.9mm, 2.0mm, 3.0mm |
♦ Advanced aluminum house with good heat Dissipation
♦ Full-GaAs MMIC application with low noise. Digital signal is
received -18dBm at lowest and analogy signal -9dBm at lowest.
♦ AGC control range: 0~-9dBm, output level keep unchanged.
♦ Low power consumption, high-efficiency switch power can make sure
the high reliability and stability of power supply. Power
consumption less than 2W. It adopts optical detecting circuit.
♦ Multi-stage anti-thunder devices (TVS transient suppression
diode), strictly anti-thunder system to ensure the safe operation
of the equipment
♦ Built-in WDM,single-fiber to the home (1490/1310/1550nm)
triple-play application can be realized.
♦ Built-in isolator can split the two optical waves (1490nm and
1310nm)
♦ Output gain adjustable (0~18dB),output level >80dBuV.It can
realize the power supply of 8V input port feeding.
♦ One output or two outputs.
