FC / APC Fiber Optic Connector -40 to 80°C Operating Temperature
for Ftth and Network

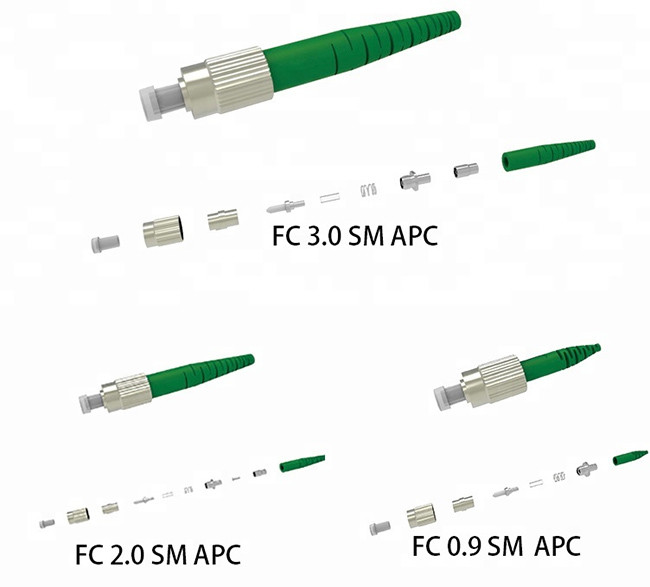

♦ Optical fiber connector kits:
- Insertion Loss: Single mode ≤ 0.2dB & Multimode ≤ 0.3dB
- Return Loss: PC ≥ 50dB, UPC ≥ 55dB & APC ≥ 65dB
- Durablity <0.2dB typical change, 1000 mating
- Operating Temperature: -40 to 80°C
- Ferrule Hole Sizes;
♦ Singlemode:
- 125.0+1/-0um, concentricity ≤ 1.0um
- 125.5+1/-0um, concentricity ≤ 1.0um
- 126.0+1/-0um, concentricity ≤ 1.0um
♦ Multimode:
- 125um concentricity ≤ 3um
- 127um concentricity ≤ 3um
- 128um concentricity ≤ 3um
♦ Availablity:
-The connector can be supplied as a pre-assembled one piece
connector or as connector kits and one piece.
-Clips are available for FC and LC duplex connectors
-PC and APC are available
-Boots in a variety of colors
♦ Characteristic
Item: |
LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc |
Type: |
Multi-Mode Single-Mode |
| Operating Wavelength | 850nm& 1300nm 1310nm & 1550nm |
| Typical Insertion Loss | 0.2dB & 0.2dB 0.2dB & 0.2dB |
| Mechanical Testing Repeatability | ≤ 0.2dB |
| Durability | > 1000 (Times) |
| Exchange | ≤ 0.2dB |
| Temperature Storage Temperature | 25 ~+85°c |
| Operating Temperature | 25 ~+85°c |
| Length, Color, Out-Diameter, Fiber counts | According to the customers' requirement |
1. With our own R&D, more completed production lines, advanced
production & testing equipments, experienced staffs, we’re
confident to provide you satisfied quality and service with
competitive price and punctual delivery.
2. Rich experiences in OEM&ODM, besides standard items, we can
help you design unique new products and put into production. We
care about innovation and would like to change for you and grow up
with you.
3. Prompt answer for any question or inquiry within 24 hours
4. Using ERP Systerm to ensure that each link is correct.
♦ Packing
- Carton
FTTA systems are a powerful network design in which a fiber optic
network connects the remote radio head (RRH) of a wireless network
directly to the base station. This replaces heavy and expensive
copper coax. The advantages of a reliable FTTA network are obvious:
signal strength, lower energy consumption, network simplicity,
reduction in noise-inducing coaxial jumpers and tower amplifiers,
more convenient engineering, higher capacity, and lighter weights.
The weakness of the fiber is that it must be clean to deliver the
speed and reliability network operators demand. That's where the
Sticklers™ FTTA Cleaning Kit comes in - it delivers clean, reliable
fiber on the first try.
Each kit contains enough supplies to clean about 1,500+ end-faces;
the kit is focused on cleaning 1.25mm ODC and LC connectors.
Everything is packaged in a handy, durable and easy-to-find bright
orange bag. The kit features the new Cassette CleanClicker™ 400.
This gives users the fastest, most reliable jumper cleaning in the
industry. Each kit also features the unique Sticklers™ nonflammable
cleaning fluid, and each can contains enough fluid to clean 650+
connectors. This fluid replaces IPA alcohol and makes "wet-dry"
cleaning a snap.
Better cleaning eliminates time-wasting re-cleaning and minimizes
expensive repair call-outs. The kits contain no hazardous materials
and can be shipped anywhere in the world by ground, air or sea
without restrictions.
