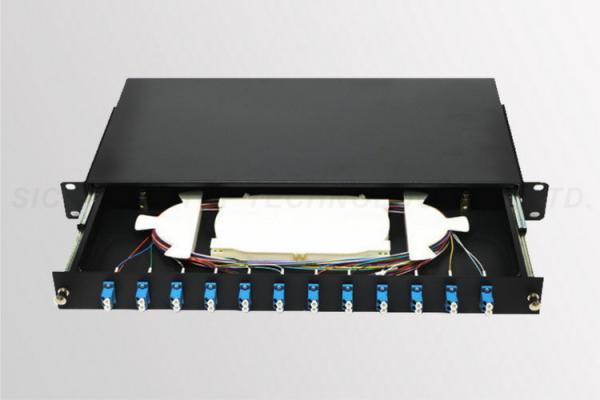

Patch Panel Fiber Optic 24 Port 19 Inch Rack Mounted OTOP/ OEM
Accepted
♦ Description
Rack mount patch panel is mainly used for connection and storage
between optical fiber cable and pigtail in equipment, it can be
wall mounted and floor-standing installation. The box body is made
of high quality cold rolled steel,electrostatic spraying, the
appearance is beautiful, and the operation is convenient.
♦ Quick Details
- FC, SC, ST and double core SC adapter can be installed.
- It is a necessary auxiliary devices for 19 "standard cabinet.
- It adopts precision bearing rail, smooth and flexible in
pulling,pushing.
- The tray is designed as a drawer which is easily for convenient
operation.
- Series of this type have fiber splicing, wiring, storage,
external on one item.
♦ Aplication
- Data center, pre-terminated installations
- Telecommunication networks
- Storage area networking fiber channel
- High density architectures
♦ More details
The panel can be changed into different port, such as SC, LC, FC
ect, 12port, 24port , 48port ,96 port and 144 port .
Product structure:cable terminal box is composed of a casing,
internal components, optical fiber joint protector is composed of 3
parts.
- Shell: the shell should be able to easily open, convenient
installation; shell should be used for the cable metal component
high pressure protection grounding lead out device.
- The internal component should include the following parts.
- Support: main body structure, used for the internal support.
- Set fiber discs: for in order to store optical fiber connector
(and protection) and the remaining optical fiber, and have to
continuously provide markers and convenient operation, easy
identification of fiber space.
- The fixing device for cable jacket: fixed cable strengthen
member, fixed and fixed wiring pigtail.
- Materials: cable terminal box parts all use material should have
anti-corrosion performance, such as no antiseptic properties of the
electrostatic spray processing; compatibility between physical,
chemical properties of stable materials and materials.
- The box body is made of cold rolled steel plate, the surface
electrostatic spray, color uniform, convenient construction.
- The box body with frame type, convenient and quick assembly and
disassembly.
- Set fiber disc to overlay reversible, flexible turning, set fiber
plate, ensure the remaining optical fiber curvature radius is
larger than 37.5mm when the coil.
- Unique structure, reasonable layout, there is enough operation
space.
- Import cable inlet is equipped with an adjustable clamping ring
and stiffener, can be easily adjusted according to the size of the
cable, until the locking.
- The number of cores 1-12 core, based on user demand.
♦ Features
◊ Standard size, light weight and reasonable structure
◊ Splice tray inside changeable
◊ 19-inch standard size, light in weight and robust structure
◊ Suitable for ribbon and single fiber
◊ Various panel plate to fit different adapter interface
◊ Front mark on the plate is easy for identification and operation
◊ 24C, 36C, 48C, 96C,144C optional, with or without fiber optic
pigtails and adapters
◊ Easy for management and operation
