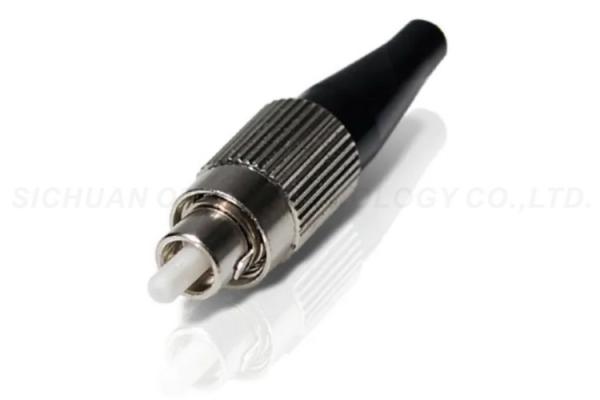

FC / UPC Fiber Optic Cable Connectors With Lower Insertion Loss
0.2dB
♦ Optical fiber connector kits:
- Insertion Loss: Single mode ≤ 0.2dB & Multimode ≤ 0.3dB
- Return Loss: PC ≥ 50dB, UPC ≥ 55dB & APC ≥ 65dB
- Durablity <0.2dB typical change, 1000 mating
- Operating Temperature: -40 to 80°C
- Ferrule Hole Sizes;
♦ Singlemode:
- 125.0+1/-0um, concentricity ≤ 1.0um
- 125.5+1/-0um, concentricity ≤ 1.0um
- 126.0+1/-0um, concentricity ≤ 1.0um
♦ Multimode:
- 125um concentricity ≤ 3um
- 127um concentricity ≤ 3um
- 128um concentricity ≤ 3um
♦ Availablity:
-The connector can be supplied as a pre-assembled one piece
connector or as connector kits and one piece.
-Clips are available for FC and LC duplex connectors
-PC and APC are available
-Boots in a variety of colors
♦ Characteristic
Item: |
LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc |
Type: |
Multi-Mode Single-Mode |
| Operating Wavelength | 850nm& 1300nm 1310nm & 1550nm |
| Typical Insertion Loss | 0.2dB & 0.2dB 0.2dB & 0.2dB |
| Mechanical Testing Repeatability | ≤ 0.2dB |
| Durability | > 1000 (Times) |
| Exchange | ≤ 0.2dB |
| Temperature Storage Temperature | 25 ~+85°c |
| Operating Temperature | 25 ~+85°c |
| Length, Color, Out-Diameter, Fiber counts | According to the customers' requirement |
1. With our own R&D, more completed production lines, advanced
production & testing equipments, experienced staffs, we’re
confident to provide you satisfied quality and service with
competitive price and punctual delivery.
2. Rich experiences in OEM&ODM, besides standard items, we can
help you design unique new products and put into production. We
care about innovation and would like to change for you and grow up
with you.
3. Prompt answer for any question or inquiry within 24 hours
4. Using ERP Systerm to ensure that each link is correct.
1) Superior qualified standard polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2
(UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC);
≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional
5) Simplex and duplex connector available;
6) Good exchange ability and good durability;
7) Available in fiber bunch, ribbon fan-out, pigtail available;
8) Meets ISO9001, ROHS and Bell core GR 326-core standards;
9) Customized specifications are welcomed.
