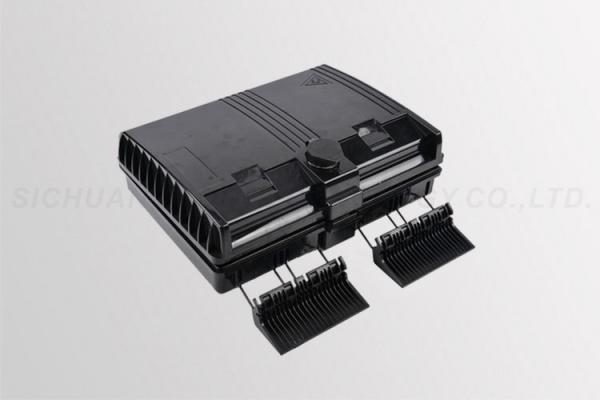

    OTOP Fiber Optic Distribution Box 16 Port 1*16 PLC Splitter FTTH Network System

    Ask Lasest Price
    Brand Name : OTOP
    Model Number : 16 Port ODB
    Certification : RoHS, ISO9001,ISO14000, OHSAS18001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000 pcs per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    OTOP Fiber Optic Distribution Box 16 Port 1*16 PLC Splitter FTTH Network System

    OTOP Fiber Optic Distribution Box 16 Port 1*16 PLC Splitter FTTH Network System


    Small size and light weight for easy installation compact body.
    Easy installations: Ready for wall mount – installation kits provided.
    Lower layer for splicing .
    Upper layer for cross-connecting and fiber distribution.
    Fully stable adapter panel, no risk of movement.
    Fiber can get in from bottom or side


    Description


    - The Fiber Termination Box is designed specifically for FTTX network building.
    - Can be done fiber splicing ,splitting, distribution in this distribution box,
    - It is well suited for indoor or outdoor use.


    Application


    - Great for wall mounting or pole mounting

    - Widely used in FTTH network system

    - PC+ABS material,wet-proof,water-proof,anti-aging

    - Protection level up to IP65It is applicable to installation and use of SC adapter or LC adapter,fast connector.


    Specification


    Environmental requirementWorking temperature:-40~+80ºCRelative humidity:≤85%(+30ºC)Atmospheric pressure:70Kpa~106Kpa
    Main technical datasheetInsertion loss:≤0.2dBUPC return loss:≥50dBAPC return loss:≥60dBLife of insertion and extraction:>1000
    Thunder-proof technical datasheetThe grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MΩ/500V(DC); IR≥2x104MΩ/500V
    The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover;U≥3000V
    Dimensions(L*W*H)mm275×200×80
    InstallationWall mounting(indoor/outdoor) Pole Mounting
    Level of protectionIP65
    Cable EntriesWaterproof connector
    Weight0.85kg
    No. of Adaptor & Splitter1*16 PLC splitter/SC 16 CORES/Duplex LC 32 cores
    Max. Capacity of Fiber16 fibers
    Max. Capacity of Splice16 cores

    Packing


    - Carton
