Fiber Optic Field Mounting Connector FTTX FC / UPC Return Loss > 50 dB

♦ Specification:

- Model APC model
- Connector Type FC/UPC
- Fiber diameter 0.125mm
- Fiber Mode Single
- Insertion Loss <0.5dB (typical 0.2dB)
- Return Loss >50dB
- Tensile strength >20N
- Temperature -40ºC-+70ºC
- Temperature cycling IL<0.3dB,RL<5dB

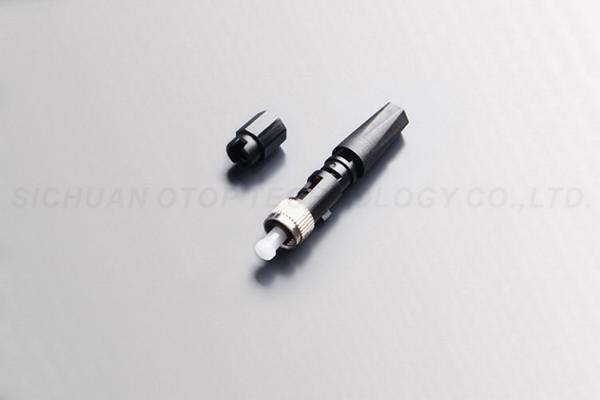

Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly.
It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design,
and need not gluing, polishing neither any consumables.adopted fiber preinstalled structure, and convenient for field installation.

♦ Packing

- Blister & Carton

This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.
Connector Type: FC/UPC
Fiber Application: Singlemode
Fiber Type: Simplex
Number of Fibers: 1
Maximum Cable Diameter (mm): 250um, 900um, 2mm, 3mm Fiber Types
Connector Ferrule: Ceramic
Fiber Size: 9/125um
