Brand Name : | OTOP |
Model Number : | LC/APC |
Certification : | ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 400000pcs per month |
Delivery Time : | 5-8 working days |

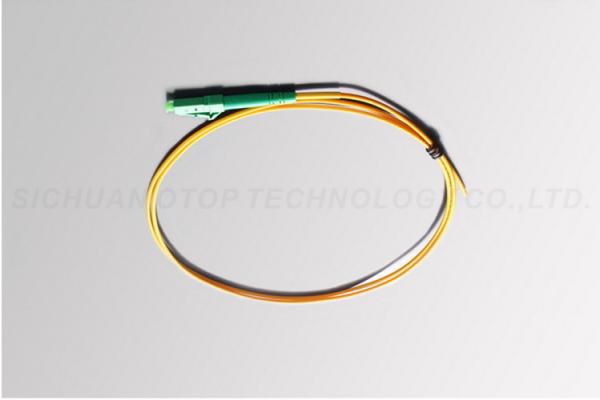

OTOP Fiber Optic Pigtail G652D G657A 2.0mm 3.0mm Length SGS Certification
♦ Features
Reliable performance, universal used
Anti-pulls, corrosion protected, the harsh conditions in the wild
used
Construction of convenience, the optical fiber is fixed when twist
the joints
- Price-Competitive
- Low Insertion Loss & PDL
- Factory-terminated and Tested
- Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber
- Connector Options: FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
- Polishing Options: PC/UPC/APC
- Feature Connector with Ceramic Ferrules
♦ Applications
1. Telecommunication networks
2. Optical fiber access networks
3. Optical Switch Interframe Connection
4. Optical fiber data communication
5. Optical fiber test equipment
6. Premise installations
7. FTTH FTTX applications
- Access Network
- Telecom/CATV Systems
- FTTx
♦ Specification
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) TIA/EIA-455-107 | ≤ 0.25dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC) |
Return Loss(dB) TIA/EIA-455-107 | ≥50dB(PC/UPC) ≥60dB(APC) | ≥40dB(PC/UPC) |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag | |
*All values specified are with connectors. |
♦ Packing
Plastic & carton
![]() |
