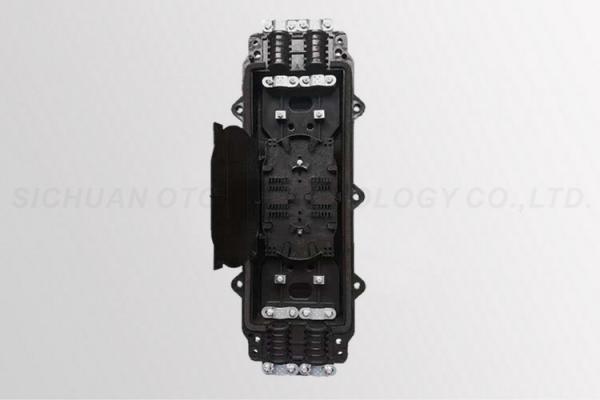

Horizontal Joint Closure Fiber Optic 12 Core 2 Inlet 2 Outlet For FTTX Network

♦ General

1. Four cable ports, two on each side. Easy reentry and re-closure. Compatible with most cable construction
(loose tube, central core, and slotted core). Fast and easy installation.
2. Soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc.
3. The case body is made from high-intensity engineering plastics and formed the shape with mold plastics
under high pressures. High mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
4. Outer metal component and fixing unit are made of stainless steel, so it can be repeatedly used in different.
5. Charged with air which pressure is 60KPa±5KPa+65℃,20℃-40℃,2h10cycles,Allow air pressure change
5KPa,immersed in the water for 15min,no air escape,air pressure change is 4KPs.
6. Soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×104MΩ,Between two metal
sections 1×106MΩ,Betwwen metal section and ground 1×106MΩ.
7. Charged with air which pressure is 100KPa±5KPa immersed in the water for 15min,no air bubble
scape;After remove for 24hr,air pressure keeps unchanged.

♦ Deatails

- Suitable for ordinary fiber and ribbon fiber.
- Fully kitted with all parts for convenient operation.
- Overlap structure in splicing tray for easy installation.
- Fiber-bending radium guaranteed more than 40mm.
- Easy to install and re-entry with a common can wrench.
- Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
- Stand up to severe condition of moisture,vibration and extreme temperatures.

♦ Aplication

- Suitable for bunchy & ribbon fibers
- Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting

♦ Features

♦ Read More

Fiber optical splice closures are designed and developed to meet the requirements of different underground environment for installation. This series of fiber optical splice closures are suitable for the national-level main circuits and other main circuits as well as special regional environment, and they can be directly buried under the ground, the underground of saline-alkali areas, long-term watered manholes and areas gathering lots of termites, with the function of butt-joint, branching and straight-through.

♦ Packing

- Standard
